AutoLayout不管是在StoryBorad还是在xib中都相对来说比较简单,VFL(Visual  fromat  language)可视化语言基本上用到的比较少,在xCode4时候自动布局的概念还没有,直接使用VFL会很方便,可视化语言依赖于oc运行时创建对应的约束,如果IBOutlet发生改变有的时候会造成莫名其妙的Bug。xCode5之后可视化语言用到的场景相对较少,但是作为一个工作的辅助还是可以稍微了解下。

基础知识

在StotyBoard中添加一个标签一个按钮,不适用自动布局,简单的控制它们之间的水平距离为80,如下图所示:

iOS开发-VFL(Visual format language)和Autolayout



视图中添加约束:

    NSLayoutConstraint  *labelContraint=[NSLayoutConstraint constraintWithItem:self.changeButton attribute:NSLayoutAttributeLeft relatedBy:NSLayoutRelationEqual toItem:self.descriptionLabel attribute:NSLayoutAttributeRight multiplier:1.0 constant:60];
    [self.view addConstraint:labelContraint];

这个只是视图约束的一种方式,下面这种方式才是本文的主角:

    //使用可视化语言添加约束
    NSDictionary  *viewDictionary=NSDictionaryOfVariableBindings(_descriptionLabel,_changeButton);
    NSArray  *visualConstraint=[NSLayoutConstraint constraintsWithVisualFormat:@"[_descriptionLabel]-60-[_changeButton]" options:0 metrics:nil views:viewDictionary];
    [self.view addConstraints:visualConstraint];

 这里面用到的constraintsWithVisualFormat方法,具体参数说明如下:

format:参数是vfl语句,语句的基本元素下面会详细解释一下;

opts:枚举参数,默认写0;

metrics:字典,当在format中使用了动态数据,会根据字典去匹配,接下来会具体有例子;

views:字典,传入需要用到的视图集合;

具体format需要参考一下表达式的意思:

水平方向          H:

垂直方向          V:

Views         [需要定义的视图]

SuperView      |

关系         >=,==,<=

间隙            -

视图内部约束           ()

Demo实战

通过VFL控制手动添加的标签的位置,具体效果如下:

iOS开发-VFL(Visual format language)和Autolayout



代码实现如下:

    UILabel *link=[[UILabel alloc]init];
    link.text=@"Http://www.cnblogs.com/xiaofeixiang";
    link.translatesAutoresizingMaskIntoConstraints=NO;
    [link setBackgroundColor:[UIColor greenColor]];
    [self.view addSubview:link];
    NSArray *horizontal=[NSLayoutConstraint constraintsWithVisualFormat:@"H:|-40-[link]-20-|" options:0 metrics:nil views:NSDictionaryOfVariableBindings(link)];

    NSArray *vertical=[NSLayoutConstraint constraintsWithVisualFormat:@"V:[_descriptionLabel]-100-[link(>=30)]" options:0 metrics:nil views:NSDictionaryOfVariableBindings(link,_descriptionLabel)];

    [self.view addConstraints:horizontal];
    [self.view addConstraints:vertical];

 第一个约束是控制标签距离父视图左右之间的距离,第二个控制标签和”博客园-FlyElephant"之间的垂直距离为100.当然如果你想通过字典控制垂直之间的距离可以按照下面这么做:

    NSArray *vertical=[NSLayoutConstraint constraintsWithVisualFormat:@"V:[_descriptionLabel]-Vertical-[link(>=30)]" options:0 metrics:@{@"Vertical":@200} views:NSDictionaryOfVariableBindings(link,_descriptionLabel)];

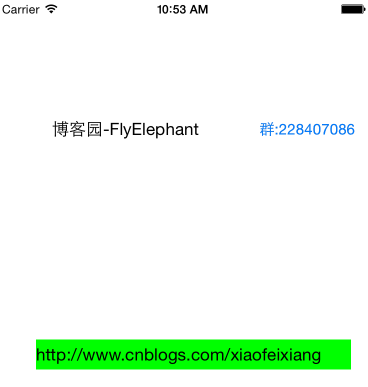

 最后的结果:

iOS开发-VFL(Visual format language)和Autolayout

友情提示在添加约束的时候不要和StoryBoard中的冲突,如果添加的水平约束StoryBoard中也有的话,就会出现下面这种情况:

2015-07-01 10:54:13.537 VFLDemo[2358:60863] Unable to simultaneously satisfy constraints.
	Probably at least one of the constraints in the following list is one you don't want. Try this: (1) look at each constraint and try to figure out which you don't expect; (2) find the code that added the unwanted constraint or constraints and fix it. (Note: If you're seeing NSAutoresizingMaskLayoutConstraints that you don't understand, refer to the documentation for the UIView property translatesAutoresizingMaskIntoConstraints)
(
    "<NSLayoutConstraint:0x7fc5e3732860 H:[UILabel:0x7fc5e372ef30'\U535a\U5ba2\U56ed-FlyElephant']-(15)-[UIButton:0x7fc5e372d550'\U7fa4:228407086']>",
    "<NSLayoutConstraint:0x7fc5e37344e0 H:[UILabel:0x7fc5e372ef30'\U535a\U5ba2\U56ed-FlyElephant']-(60)-[UIButton:0x7fc5e372d550'\U7fa4:228407086']>"
)

Will attempt to recover by breaking constraint
<NSLayoutConstraint:0x7fc5e37344e0 H:[UILabel:0x7fc5e372ef30'博客园-FlyElephant']-(60)-[UIButton:0x7fc5e372d550'群:228407086']>

Make a symbolic breakpoint at UIViewAlertForUnsatisfiableConstraints to catch this in the debugger.
The methods in the UIConstraintBasedLayoutDebugging category on UIView listed in <UIKit/UIView.h> may also be helpful.
